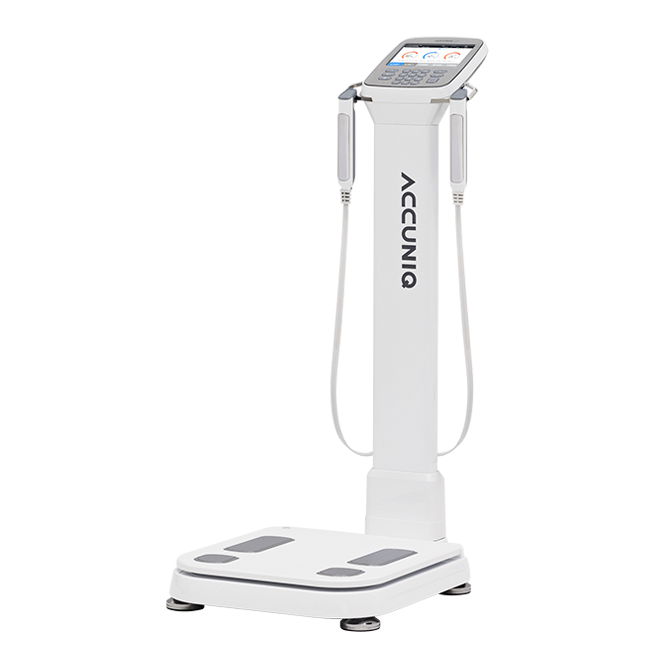

ACCUNIQ BC380
Body composition analyzer capable of measuring body composition by body part
A smart body composition analyzer that can analyze body fat and muscle mass by part and evaluate the body's water balance. A smart solution for precise body composition analysis.
Purchase Inquiry
Feature
Touch panel and intuitive UI
With a 7-inch wide color touch screen and a convenient keypad, it is easy to operate, and anyone can use it conveniently with an intuitive screen.
Line-type electrode handle and convenient foothold electrode
The improved grip and handle eliminates the need to press a separate button, and the larger foot size and lower height provide a sense of stability to the measuring target.
Check body fat and muscle mass by body part
You can see the body fat and muscle mass for five parts of the body (left arm, right arm, left leg, right leg, trunk). Muscle mass is applied to people who need to increase muscle strength in a specific area, such as athletes or rehabilitation patients.
Check extracellular water ratio (edema index)
Extracellular water ratio is an index that evaluates the body's water balance with respect to total body water, displaying the current state of measurement as appropriate, borderline, or abnormal.
Link to blood pressure monitor
You can manage your blood pressure in relation to obesity and body composition by connecting our automatic electronic blood pressure monitor. You can efficiently manage both results in one sheet.
Ultrasonic height meter (optional)
You can measure the height together by connecting the ultrasonic height meter, SM104. It measures the height by the distance measurement method of the ultrasonic sensor.
Product Information
ACCUNIQ BC380 is a smart body composition analyzer that can analyze body composition through accurate body data measurement. It is a product that can be used in various fields such as medical institutions and fitness centers as it can evaluate the measuring target's water balance by checking the extracellular water ratio.
(The height of the model is 170 cm)
Provides intuitive and convenient interface
Measure in a comfortable position
It is designed in a cable connection method between the main body and hand electrodes
so that anyone from a child to an adult with the height of 220 cm can comfortably measure with arms wide open.

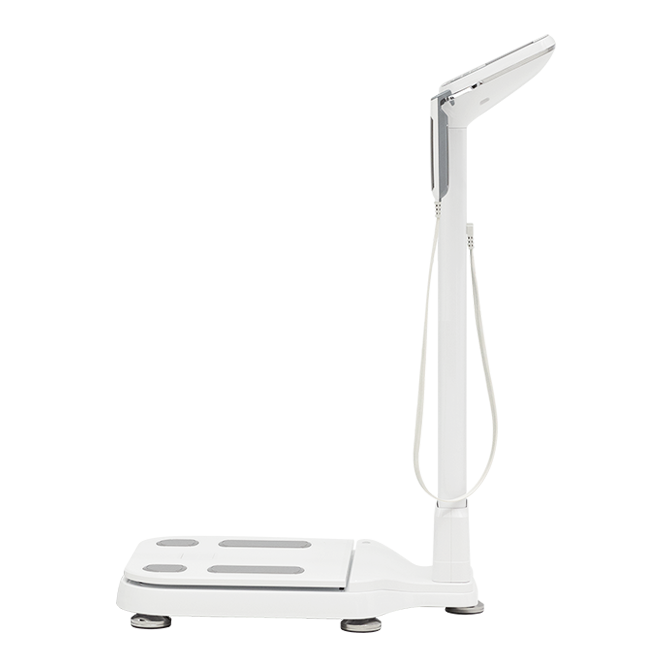

Widened and lowered foothold electrodes
You can measure comfortably with the larger foothold size and lower height compared to our existing products.
Measurement as a member
Even if you do not use a separate management program, you can accumulate and manage the measured results by registering as a member in the product itself.
ACCUNIQ Connect mobile app
The user can manage the data by taking a picture of the QR Code displayed on the touchscreen or the QR Code on the printed measurement result sheet with the ACCUNIQ Connect mobile app after completing the measurement.
Data management program
Using the data management program ACCUNIQ Manager, you can systematically analyze and manage member measurement data on your computer. 1:It is a health management solution to provide a better lifestyle through 1:1 customized data management and customized diet and exercise prescription.
You can connect the ACCUNIQ BC380 to your computer using the optional Bluetooth dongle or USB cable.
(ACCUNIQ BC380 supports software services, egym, virtuagym, myzone, MAT and also provides ACCUNIQ cloud service for private customers to save cost.)
ACCUNIQ Connect mobile app
It is custom-made for the BC380 product, providing a sense of stability and unity.
It automatically measures the height value from a minimum of 100 cm to a maximum of 210 cm using an ultrasonic sensor.
(You can manually enter values from 50 to 220 cm.)

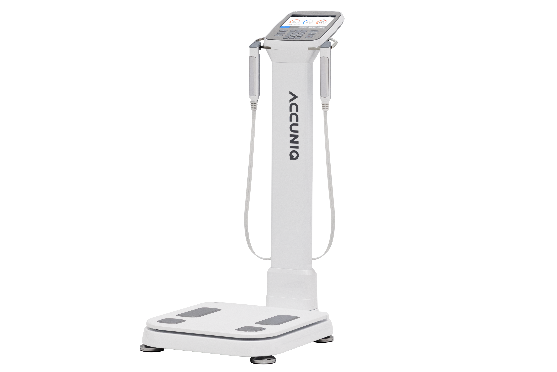

Main body
Product size: 436 (width) x 641 (depth) x 1029 (height) mm (± 10 mm)
When installing SM104 product
Product size: 436 (width) x 795 (depth) x 2327 (height) mm (± 10 mm)
※ This product is not a medical device, which is an optional product sold separately.
Black color for space harmony
Black color is added to the selectable options upon suggestion from a fitness customer.
It is available in two colors, white or black, to match the interior atmosphere of the installation site.
Link to an automatic electronic blood pressure monitor
It provides systolic blood pressure, diastolic blood pressure, pulse, etc. measured through an automatic electronic blood pressure monitor as well as body composition measurement.
List of supported products
BP500, ACCUNIQ BP210, ACCUNIQ BP250, ACCUNIQ BP850
※ This product is an optional product sold separately.
Items provided in the body composition result sheet
1
Body composition analysis
It displays the measurement results and normal ranges of body water, protein, minerals, and body fat that make up our body.
2
Skeletal muscle/fat analysis
It displays weight, skeletal muscle mass, and body fat mass in a graph, enabling you to know the ratio of skeletal muscle and body fat.
3
Obesity analysis
It displays the body mass index and body fat ratio in a graph, which are important for obesity evaluation.
4
Abdominal obesity analysis
Fat in the human body consists of subcutaneous fat and visceral fat. It evaluates various items for visceral fat, which is closely related to adult diseases.
5
Muscle and fat analysis by part
It analyzes the muscle and fat mass in five parts of the body (left arm, right arm, left leg, right leg, trunk) and displays them in a graph.
6
Body change graph
It shows the measurement history for weight, skeletal muscle mass, and body fat mass.
7
Comprehensive evaluation
You can check body type determination, body age, basal metabolic rate, daily required calorie, cell mass, visceral fat mass, obesity level, abdominal circumference, overall score, etc.
8
Body balance evaluation
It evaluates the left-right balance of the upper body and the lower body. It evaluates whether the human body is balanced left and right, up and down, rather than having more or less muscle or fat.
9
Weight control
Recommended weight and control values for weight, muscle, and fat. Also includes extracellular water ratio analysis.
10
Muscle mass by body part
It displays the muscle mass and condition of five parts of the body compared to the standard weight.
11
Impedance
Displays impedance by frequency and body part.
12
Blood pressure analysis
Displays measured blood pressure data using ACCUNIQ device, useful for evaluating obesity and blood pressure together.
Product specifications
- Measurement (electrode) method
- 4-electrode method using 8 contact electrodes
- Measurement items
- 3 types of frequency (5kHz, 50kHz, 250kHz)
Whole body and 5 parts (left arm, right arm, left leg, right leg, trunk)
- Measured weight
- Maximum 250 kg
- Weight
- Main body: About 18 kg
Equipped with the height meter: About 21.3 kg
- Input device
- 7-inch Touch Screen, Keypad
- Transmission media
- USB 2.0 terminal, RS-232C serial port, Bluetooth adapter, External port
- Result check
- 7-inch LCD screen, A4 result sheet, thermal result sheet, data management program (ACCUNIQ Manager for Windows), mobile app (iOS, Android), web page
- Basic components
- Main body, USB memory (user manual and data management program), power cable and adapter, USB cable, M6 bolts, 4mm hexagon wrench, body hinge cover
- Options
- Result sheet for child, Automatic electronic blood pressure monitor, blood pressure monitor cart, USB memory, thermal printer and thermal paper, bluetooth adapter, ultrasonic height meter SM104
- Use purpose
- A device that calculates body fat by giving energy to the human body by the impedance method
※ The above information is subject to change without notice to improve appearance
and product performance.
※ This product is a ‘medical device’, so please read ‘Precautions for use’
and ‘How to use’ carefully before use.
